PlugPRO - Cement Plug Placement Model

PlugPRO Introduction Video

Setting a cement plug on the target zone either creates a solid seal to stop fluid movement or provides a kick-off point for sidetrack drilling operations. The process involves pumping cement slurry down the work string into the targeted zone, removing the work string from the cement column and allowing the cement slurry to harden in the wellbore. The volume of spacers pumped ahead and behind cement and the volume of displacement is critical to the quality of the cement plug. The traditional method is to pump all the fluids until each fluid level is equal to that inside the string. The limitation to this method is that the fluid could be contaminated once the string is pulled out of the hole due to variable fluid densities as well as wellbore and work string sizes.

Pegasus Vertex, Inc. has developed PlugPRO, software that models the displacement hydraulics of fluids and simulates fluids contamination during pipe pull out of hole. PlugPRO aids in optimizing the pumping schedule to minimize contamination within the cement slurry and spacer once the work string is pulled out of hole, ultimately, enhancing wellbore integrity.

• Screenshots
• Brochures
• Quick Start Video

• PlugPRO: Cement Plug Placement Model (English)

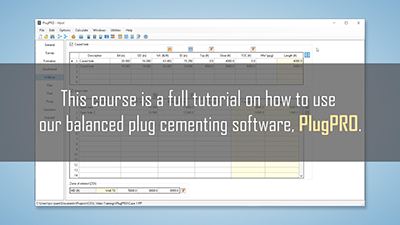

PlugPRO Quick Start Video Preview

We now have a PlugPRO (cement plug placement model) introductory video, consisting of 3 parts. In the video, we give a broad, but complete overview of the software, exploring both the input and output sections.

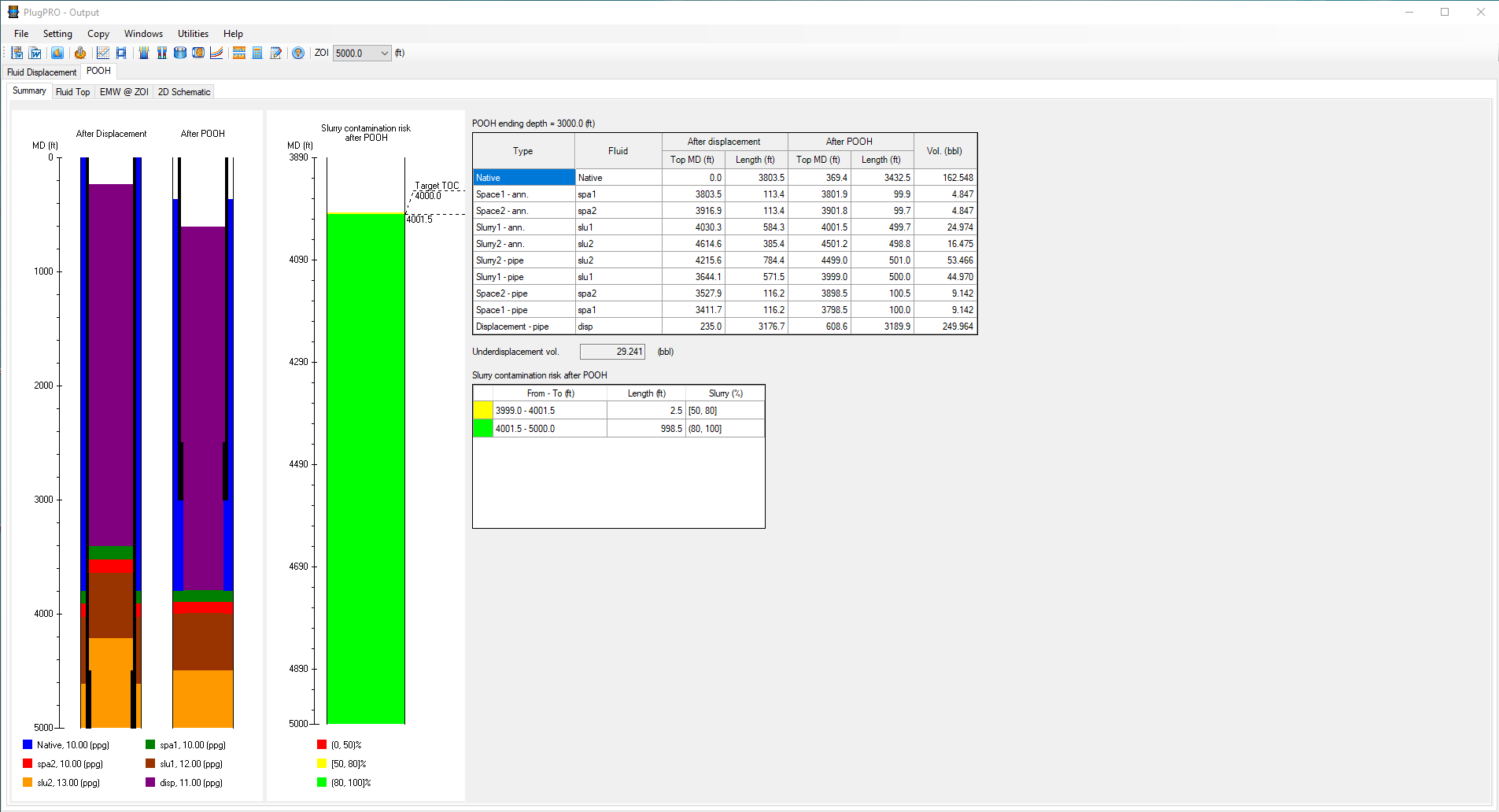

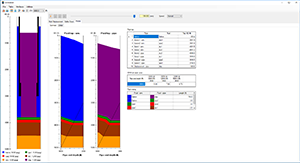

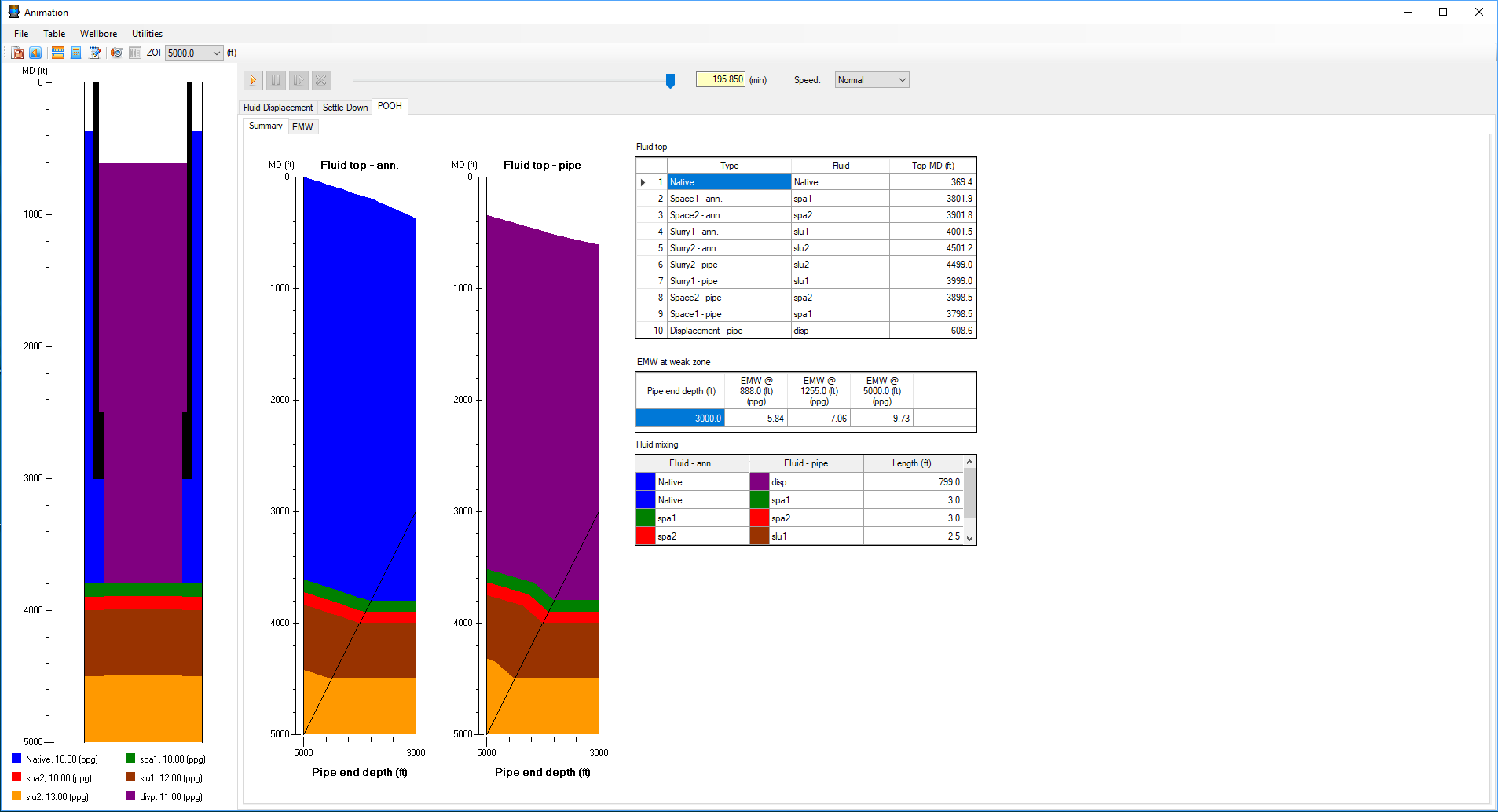

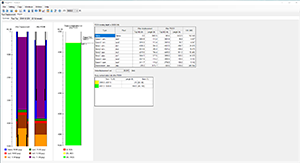

The first part of the video gives a quick overview and introduction to PlugPROs full capabilities. The second portion and third portions go in-depth focusing on Geothermal, Wellbore, Pipe in the input section. Third we look at the output sections and its features such as POOH, Animation, Fluid Displacement to name a few.

Contact us today at sales@pvisoftware.com for a free PlugPRO trial and start learning today!

Full Video: https://vimeo.com/ondemand/plugprotraining
